How PlayStation Works

By: Jeff Tyson
The PlayStation console was once the biggest seller among video game systems. See more video game system pictures.

The Sony PlayStation (PSX) was once the dominant video game system. Although challenged by the incredible technical features of the Nintendo 64 and the next generation Sega Dreamcast at the time, the PlayStation was so popular that Sony estimated that one out of every four households in the United States had one.­­

In this edition of HowStuffWorks, you will learn about the development of the PSX, what's inside the box and how it all works together. You will also learn about the controller, including the popular Dual Shock version.

Advertisement

The History of PlayStation

In 1988, Sony entered into an agreement with Nintendo to develop a CD-ROM attachment, known as the Super Disc, for the soon-to-be released Super Nintendo. Due to many contractual and licensing problems, the Super Disc was never released. Instead, a modified version was introduced by Sony in 1991, in a system called the Play Station.

The original Play Station read these Super Discs, special interactive CDs based on technology developed by Sony and Phillips called CD-ROM/XA. This extension of the CD-ROM format allowed audio, video and computer data to be accessed simultaneously by the processor. The Play Station also read audio CDs, and had a cartridge port for accepting Super Nintendo game cartridges. The Play Station was envisioned as the core of a home multimedia center. Sony only manufactured about 200 of them before deciding to retool the design.

Advertisement

The new design, dubbed the PlayStation X, or PSX, dropped the Super Nintendo cartridge port and focused solely on CD-ROM-based games. The component hardware inside the console was revamped as well, to ensure an immersing and responsive gaming experience. Launched in Japan in December of 1994, and in the United States and Europe in September of 1995, the PlayStation quickly became the most popular system available.

PlayStation Console

When you look inside a PlayStation, you can see the processor and memory chips.

Let's take a look at the components inside a PlayStation, and what their capabilities are. [Be sure to check out How Video Game Consoles Work first for a general introduction to game consoles.]

Processor: 32-bit R3000A

Advertisement

  • Processor clock speed: 33.8688 MHz
  • MIPS (Million Instructions Per Second): 30
  • Bus speed: 132 MB per second
  • Cache: Data: 4 KB; Instruction cache: 1 KB

Graphics:

  • Resolution: 640x480 maximum (five interlaced and four non-interlaced modes supported)
  • Colors: 24-bit (16,777,216) maximum; other modes supported are 4-bit (16), 8-bit (256) and 15-bit (32,768)
  • Maximum sprite size: 256 pixels high x 256 pixels wide
  • Polygon rendering: 360,000 polygons per second
  • Geometry engine: Provides additional hardware rendering of polygons to include Gouraud shading, texture-mapping and lighting effects
  • Memory: 1 MB RAM
  • MPEG decoder
Audio:
  • Channels: 24
  • Sample rate: 44.1 KHz
  • Memory: 512K RAM
  • Digital effects (envelope, looping, reverb)
  • MIDI support

Memory: 2 MB RAM

Operating system: Proprietary 512K ROM

Game medium: CD-ROM

  • Transfer speed: 150 KB per second normal, 300 KB per second double speed
  • Audio CD support
  • Memory buffer: 32K

The CPU in the PSX is a RISC processor. RISC stands for reduced instruction set computer, and means that the instructions and computations performed by the processor are simpler and fewer. Also, RISC chips are superscalar -- they can perform multiple instructions at the same time. This combination of capabilities, performing multiple instructions simultaneously and completing each instruction faster because it is simpler, allows the CPU to perform better than many chips with a much faster clock speed.

To lower production costs, the CPU, graphics and audio processors are combined into a single application specific integrated circuit, or ASIC. Simply put, the ASIC is a customized chip created to manage all of the components that would otherwise be handled by three separate chips.

The PlayStation reads games from a CD-ROM/XA disc with a laser.

The games come on proprietary CD-ROM/XA discs that are read by laser, just like regular CDs. When a game is put in the console, the following happens:

  • You turn the power on.
  • The disc spins up to speed.
  • While the disc is spinning up, the console loads portions of the operating system from ROM into RAM.
  • The game initialization sequence is loaded into RAM.
  • You interact with the game via the controller.
  • As each specific part of the game is requested, the application code and hardware-render geometry are loaded into RAM, while the video and audio portions are usually streamed directly from the CD.
  • The CPU coordinates everything. It receives the input from the controller, pulls the data from RAM and directs the graphics and audio processing.
  • You are finally beaten by the game and turn it off.

Since all information is flushed from RAM when the power is turned off, you will lose any personal game data. But you can save it by using one of the special Flash memory cards. The card is inserted into one of the two slots on the front of the PSX, above the port for the controller.

Advertisement

PlayStation Controller

The innovative PlayStation controller attracted attention with its winged shape and its buttons.

The controller is the primary user interface for the PlayStation. And just as the gamepad that came with the original Nintendo Entertainment System was a radical departure from previous controllers, the PSX controller changed the rules again. With its winged shape and abundance of well-positioned buttons, it is user-friendly and yet powerful.

The standard PSX controller has 14 buttons! They include:

Advertisement

  • four buttons arranged as a directional pad on the top left
  • Start and Select buttons in the top middle
  • four action buttons on the top right
  • two action buttons on the front left
  • two action buttons on the front right

Although each button can be configured to perform a specific and distinctive action, they all work on the same principle. In essence, each button is a switch that completes a circuit when it is pressed. A small metal disk beneath the button is pushed into contact with two strips of conductive material on the circuit board inside the controller. While the metal disk is in contact, it conducts electricity between the two strips. The controller senses that the circuit is closed and sends that data to the PSX. The CPU compares that data with the instructions in the game software for that button, and triggers the appropriate response. There is also a metal disk under each arm of the directional pad. If you're playing a game in which pushing down on the directional pad causes the character to crouch, a similar string of connections is made from the time you push down on the pad to when the character crouches.

Newer Dual Shock PSX controllers have analog joysticks on them, as well as the standard buttons. These joysticks work in a completely different way from the buttons described above. Two potentiometers (variable resistors) are positioned at right angles to each other below the joystick. Current flows constantly through each one, but the amount of current is determined by the amount of resistance. Resistance is increased or decreased based on the position of the joystick. By monitoring the output of each potentiometer, the PSX can determine the exact angle at which the joystick is being held, and trigger the appropriate response based on that angle. In games that support them, analog features like these allow for amazing control over gameplay.

Another feature of the Dual Shock controller, actually the reason for its name, is force feedback. This feature provides a tactile stimulation to certain actions in a game. For example, in a racing game, you might feel a jarring vibration as your car slams into the wall.

The Dual Shock controller uses force feedback to simulate the action in the game.

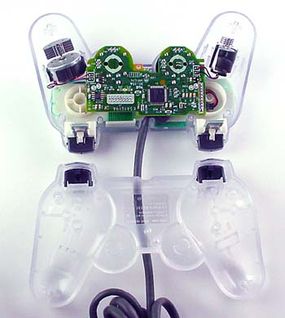

Force feedback is actually accomplished through the use of a very common device, a simple electric motor. In the Dual Shock controller, two motors are used, one housed in each handgrip. The shaft of each motor holds an unbalanced weight. When power is supplied to the motor, it spins the weight. Because the weight is unbalanced, the motor tries to wobble. But since the motor is securely mounted inside the controller, the wobble translates into a shuddering vibration of the controller itself. Now let's take a closer look at how the controller talks to the PSX.

Here's what each pin does:

  1. DATA - This pin carries the signal that the controller sends to the PSX each time a button is pressed. It is an 8-bit serial transmission.
  2. COMMAND - This pin is used by the PSX to send information to the controller. Such information might trigger the motors in a Dual Shock controller at the proper moment. It also uses an 8-bit serial transmission.
  3. Not used
  4. GROUND
  5. POWER - This pin supplies 5 volts to the controller from the PSX.
  6. SELECT - This pin is used by the PSX to notify the controller of incoming data.
  7. CLOCK - This pin carries a synchronizing signal sent from the PSX to the controller.
  8. Not used
  9. ACKNOWLEDGE - This pin sends a signal to the PSX from the controller after each command that is received on Pin 2.

Advertisement

PlayStation Games

The games on the PSX are CD-ROM-based, so they are limited to a maximum size of 650 Mb. But this is a lot of space. In fact, most games do not use more than a fraction of it for the actual game. What can eat up the space are the incredible full motion video intros and intermissions that PlayStation games are known for.

There is a noticeable delay while the game is loaded from the CD, which you do not get in cartridge-based games. Of course, the trade-off for faster loading is a significantly smaller amount of storage on the cartridge.
