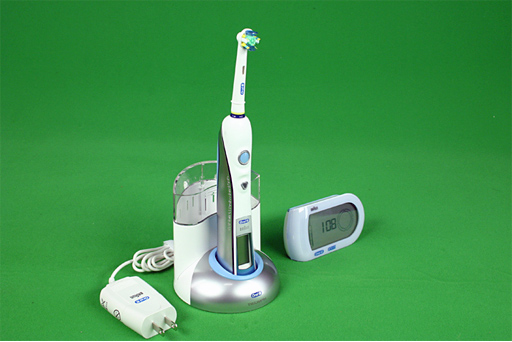

An advantage of having an electric toothbrush is the fact that it does most of the work for you. Studies prove that brushing with an electric toothbrush produces a cleaner mouth. What’s inside of these machines?
Advertisement

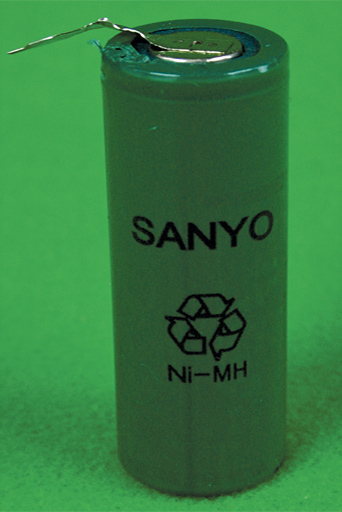

The rechargeable battery of an electric toothbrush provides power that enables the toothbrush to move.

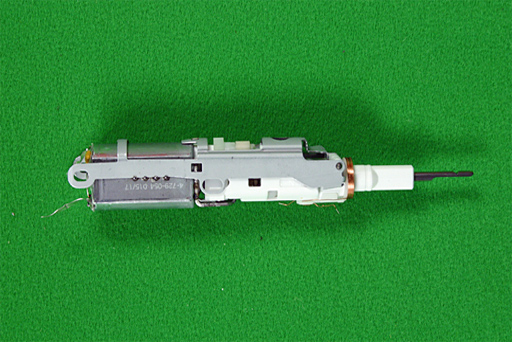

The motor is the spearhead for all of the motion within an electric toothbrush.

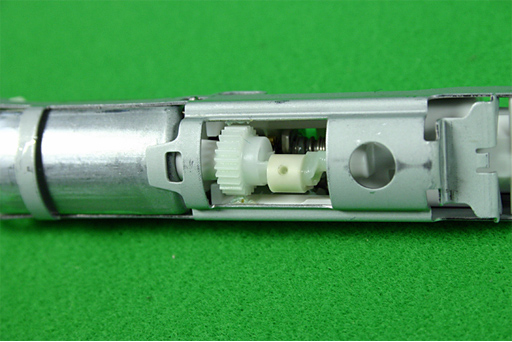

The motion begins with the gear. The motor simply turns the gear to initiate the motion needed to clean your teeth.
The gear is connected to the rod at the top of the electric toothbrush. As the gear continuously turns, it pushes and pulls the rod. This translates into a back-and-forth motion.
Advertisement

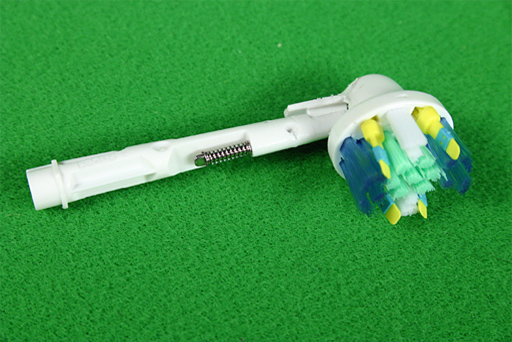

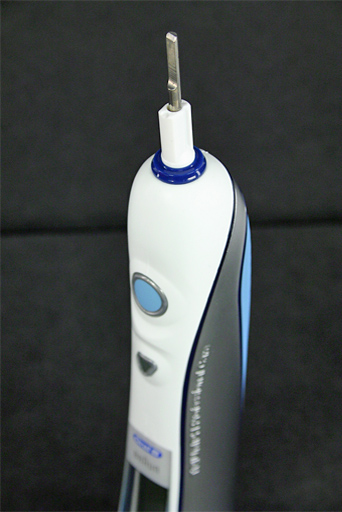

A series of rods and connectors carries this motion to the toothbrush head. This causes the bristles to oscillate back and forth at a high speed.

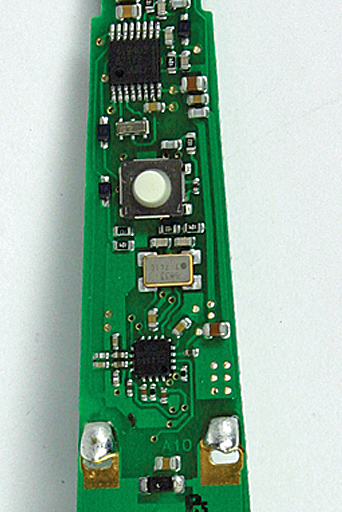

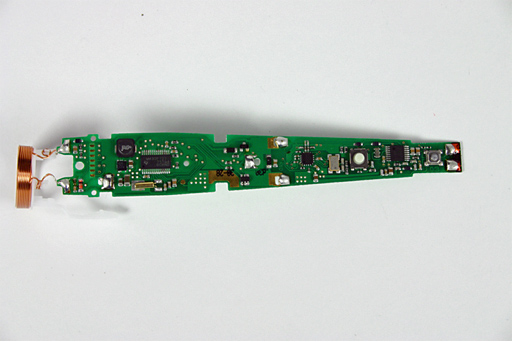

The battery provides power or electricity to the printed circuit board (PCB). The PCB carries enough energy to run several components.

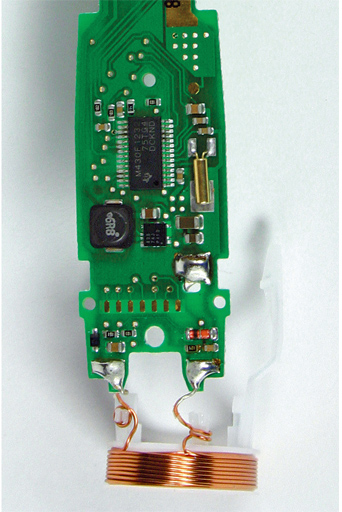

One small element of the PCB is integrated circuits. These are also called processors. These processors monitor what’s occurring in other parts of the toothbrush.
The processors are responsible for monitoring the battery’s charge and telling the screen to display how much electricity is left.
Processors also communicate with different parts of the toothbrush. When the “on” button is pressed, a switch completes a circuit on the PCB.
Advertisement
The processor detects this completed circuit and sends instructions to start the motor.

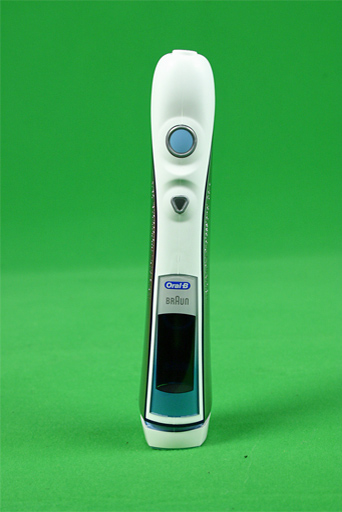

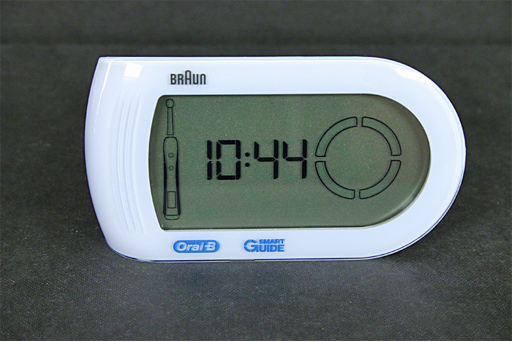

A benefit of owning this particular electric toothbrush is that it communicates with an external screen. This screen shows you when to move the brush to a different part of your mouth and notifies you how much longer you need to keep brushing.

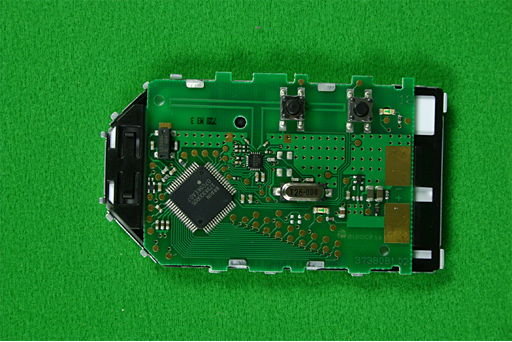

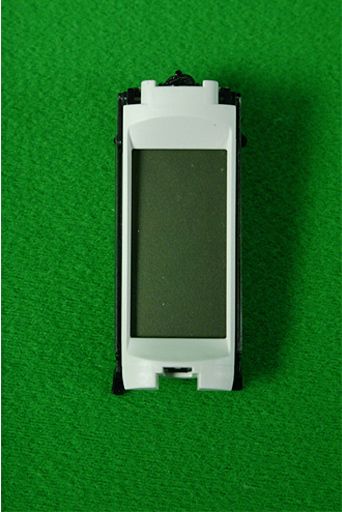

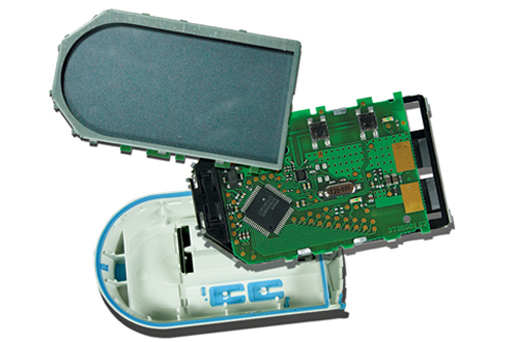

The screen consists of a liquid crystal display (LCD), a separate PCB, a couple of switches and a processor.
The screen and toothbrush communicates using radio waves, through the use of matching transceivers that are present on both the toothbrush’s PCB and the screen’s PCB.
When your battery is running a bit low, just set it on the charger! Go to the next image to find out how the toothbrush’s battery is recharged.
Advertisement

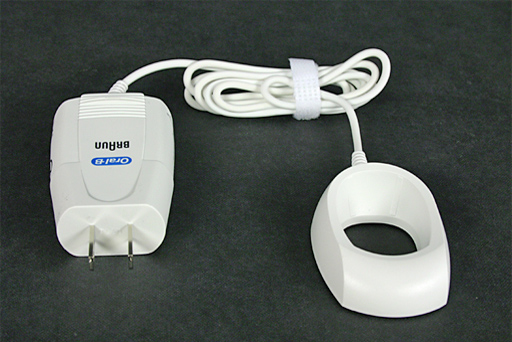

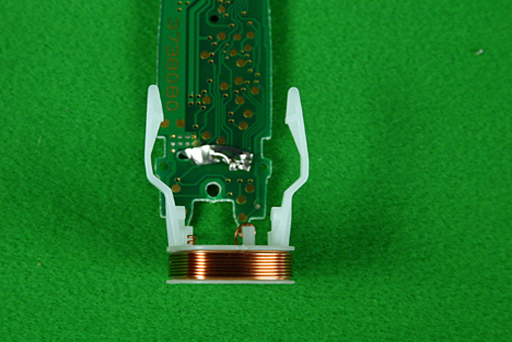

There are two metal coils, one is in the charger and the second one is in the toothbrush. When the electricity moves through the first coil, it creates a magnetic field. Once you place the toothbrush on the charger, the field induces a current in the second coil. To learn more about gadgets, see our Gadgets Channel.
